• XYZ Printing

    Wide range of printers to suit every need.

    XYZ Printing range of printers

XYZprinting is a leading global provider of comprehensive 3D printing solutions. They are now moving decisively into the industrial additive manufacturing arena with a broad range of FDM, SLA, DLP and SLS printers.

Given below is a table that will help you to choose the appropriate printer based on your requirement. For more information, please contact Stratnel at stratnel@stratnel.com


S. No.


Technology


Model No.


Features


Print Volume


Materials


Options

1FFFPartPro200 XTCSColour and Monochrome Printing185x185x150mm
(Full Colour)
200x200x150mm
(Monochrome)
FilamentsUpgradable laser engaving
2FFFPartPro300 xTDual Nozzle295x300x300mm
(Single Nozzle)
195x270x300mm
(Dual Nozzle)
FilamentsUpgradable laser engraving

3


SLA


PartPro150 xP


Enlarged Build Area, long life tank, wide resin range


50×150x200mm


Resin


Curing Chamber


4


DLP


PartPro120 xP


Ultra Fast Film technology


114×64x100mm


Resin


Curing Chamber


5


SLS


MfgPro230 xS


Open Material Platform; Removable build tray


230x230x230mm


Powder


6


Binder Jet


PartPro350 xBC


Full Colour Binder Jet


222x350x200mm


Powder

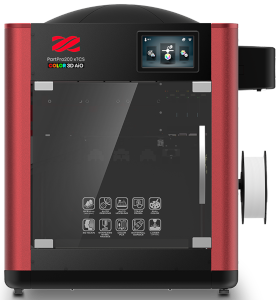

PartPro200 XTCS

PartPro300 xTPartPro150 xPPartPro120 xPMfgPro230 xS PartPro350 xBC

FFF 3D printer – Performance 3D Printers for High Quality Part

  • Print TechnologyColor Texture Inkjet Printing /
    Fused Filament Fabrication (FFF)
  • Build Volume (W x D x H)
    • Full Color Printing : 185 x 185 x 150 mm
    • Mono Color Printing : 200 x 200 x 150 mm
  • Layer Resolution100 – 400 mm
  • Build Speed180 mm/s
  • Nozzle TemperatureExtruder 260 °C
  • Print Bed: Ez-removable Metal
  • Calibration: Auto / Manual
  • Print Resuming: Yes

For more information, please contact us at stratnel@stratnel.com


PartPro300 xT

PartPro200 XTCSPartPro150 xPPartPro120 xPMfgPro230 xS PartPro350 xBC

FFF 3D Printer – Designed for Ease of Use and High Performance

  • Print Technology: Fused Filament Fabrication (FFF)
  • Build Volume (W x D x H)
    • Dual : 195 x 270 x 300 mm
    • Single : 295 x 300 x 300 mm
  • Layer Resolution: 50 – 700 micron
  • Build Speed: 300 mm/s
  • Print Bed: Removable Glass
  • Print Bed Temperature100 °C
  • Max. Heating Chamber Temp.: 70 °C
  • CalibrationAuto / Manual
  • Filament Feeding System: Yes
  • Print Resuming: Yes
  • Air Filtering: Yes
  • Built-in Camera: Yes

For more information, please contact us at stratnel@stratnel.com


PartPro150 xP

PartPro200 XTCSPartPro300 xT PartPro120 xPMfgPro230 xS PartPro350 xBC

SLA 3D Printer – Accelerate Ideas



  • Print Technology: SLA (Stereolithography)
  • Build Volume: (W x D x H)150 × 150 x 200 mm
  • Layer Resolution: 25 / 50 / 100 / 200 micron
  • X-Y Resolution: 130 micron
  • Light Source: UV Laser λ 405 nm
  • User Interface: 5″ Touch panel LCD (RTP)
  • ConnectivityWireless / Ethernet / USB 2.0 Cable

For more information, please contact us at stratnel@stratnel.com


PartPro120 xP

PartPro200 XTCSPartPro300 xT PartPro150 xPMfgPro230 xS PartPro350 xBC

DLP 3D Printer – High resolution parts in minutes

  • Print Technology: UFFTM (Ultra Fast Film) / DLP Technology
  • Build Volume: (W x D x H) 114 × 64 x 100 mm
  • Layer Resolution: 25 / 50 / 100 micron (Material dependent)
  • X-Y Resolution: 60 micron
  • Light Source: UV LED λ 405 nm
  • User Interface5″ Touch panel LCD (RTP)
  • ConnectivityWireless / Ethernet / USB 2.0 Cable / USB Flash Drive

For more information, please contact us at stratnel@stratnel.com


MfgPro230 xS

PartPro200 XTCSPartPro300 xT PartPro150 xPPartPro120 xP PartPro350 xBC

SLS 3D Printer – for high volume printing

  • Print Technology: SLS (Selective Laser Sintering)
  • Build Volume (W x D x H)230 x 230 x 230 mm
  • Layer Thickness: 0.08 mm / 0.1 mm / 0.15 mm / 0.2 mm
  • Build Speed: Up to 20 mm / hour
  • Laser Type: 30W CO2
  • N2 System: Inner Gas Control System
  • Material Compatibility: sPro12X / SproTPU

For more information, please contact us at stratnel@stratnel.com


PartPro350 xBC

PartPro200 XTCSPartPro300 xT PartPro150 xP PartPro120 xP MfgPro230 xS

BINDER JETTING 3D Printer – High Productivity Color Part Platform

  • Print Technology: Binder Jetting
  • Build Volume: (W x D x H)222 x 350 x 200 mm
  • Resolution: 1600 x 1600 dpi
  • Layer Thickness: 0.10 mm
  • Build Speed: Up to 18 mm / hour
  • Material: BuiltPro Powder

For more information, please contact us at stratnel@stratnel.com
