• Intamsys

    Industrial printers for high performance engineering plastics

Intamsys makes industrial quality printers that can be used for printing high performance engineering polymers such as PEEK, PEKK, Ultem, PPSU, HIPS, etc. For demanding engineering applications where ordinary polymers do not provide adequate material properties, speciality polymers may need to be used. Intamsys printers are designed for printing high quality parts using speciality polymers that can meet specific requirements.

Given below is some brief information on the range of printers from Intamsys. For more information, please contact us by clicking on the “Get in touch” button on the right and filling up the form, or write to us direct at stratnel@stratnel.com

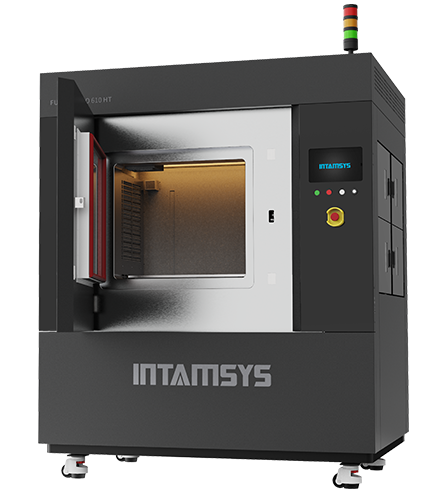

FUNMAT PRO 610 HT

Flex 510 – Pro 410 – Funmat HT

LARGE FORMAT INDUSTRIAL 3D PRINTER

The 610HT is a large format printer capable of printing very large parts at very high temperatures.

  • Build Volume: 610 x 508 x 508mm
  • Heated print chamber – 300°C constant chamber temperature
  • Heated build plate – 300°C
  • Extruder: All metal hot end at up to 500°C
  • Nozzle: Dual Nozzles
  • Layer height from 50 microns
  • Material: ABS, Nylon, Polycarbonate, PPSU, Ultem, PEEK, etc.
  • Open material system.

For complete specifications and quote, please contact stratnel@stratnel.com

FLEX 510

Pro 610 HT – Pro 410 – Funmat HT

Designed for flexible 3D printing

Specially designed for printing with flexible materials. Multi color printing. Comes with 4 nozzles. Ideal for sporting goods and medical rehabilitation equipment.

  • Build Volume: 508×508×450mm
  • Active Automatic Leveling Technology
  • Layer Thickness: 0.1-1.0mm
  • Nozzle Switching: Smart Xtruder Bay System Technology
  • Filament Diameter: 2.85mm
  • Extruder temperature: Max. 270℃
  • Material: TPU/TPEE/Polyamide-based Thermoplastic Elastomers

For complete specifications and quote, please contact stratnel@stratnel.com

FUNMAT PRO 410

Pro 610 HT – Flex 510 – Funmat HT

The 410 printer is a medium format printer capable of printing large parts at very high temperatures.

  • Build Volume: 305 x 305 x 406 mm
  • Heated chamber & filament box
  • Automatic levelling
  • Extruder temperature: Max 500°C
  • Chamber temperature: Max 90°C
  • Filament Chamber temperature: Max 70°C
  • Material: ABS, Nylon, Polycarbonate, PPSU, Ultem, PEEK, etc.
  • Open material system

For complete specifications and quote, please contact stratnel@stratnel.com

Funmat HT

Pro 610 HT – Flex 510 – Pro 410

The HT is a table top industrial printer capable of printing parts at very high temperatures

  • Build volume: 260 x 260 x 260 mm
  • Automatic levelling
  • Extruder temperature: Max 450°C
  • Chamber temperature: Max 90°C
  • Platform temperature: Max 160°C
  • Material: ABS, Nylon, Polycarbonate, PPSU, Ultem, PEEK, etc.
  • Open material system.

For complete specifications and quote, please contact stratnel@stratnel.com
